Energy Recovery Ventilator (ERV)
Energy Recovery Ventilator (ERV)

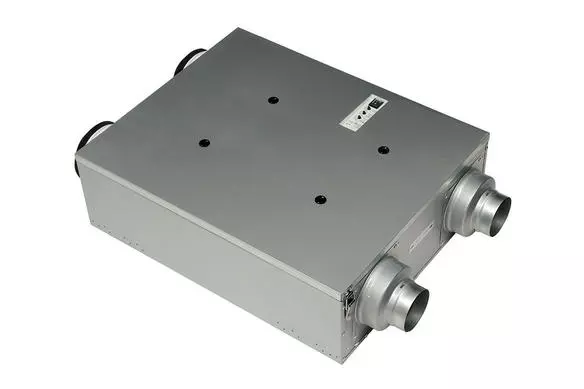

Intelli-Balance® 100 is ideal for single-family homes and multi-family units. It is a customizable, high-performance, high-efficiency Energy Recovery Ventilator (ERV) that’s designed to help you meet ASHRAE 62.2 requirements. This unique and cost-effective ERV was engineered for total versatility and installation flexibility in any climate zone. Now with a Boost function, the ERV can move the fan speed to high when activated.
- Panasonic Intelli-Balance 100 Any Climate ERV has a filter that should be vacuumed every three months and replaced at least once a year.
- Maintenance Guide: https://ftp.panasonic.com/ventilationfan/erv/erv_guide.pdf
- Filter Replacement Guide: https://ftp.panasonic.com/ventilationfan/fv10ve1/intelli_balance_filter_install.pdf
- Service Manual: https://ftp.panasonic.com/ventilationfan/service/fv-10ve2_service.pdf

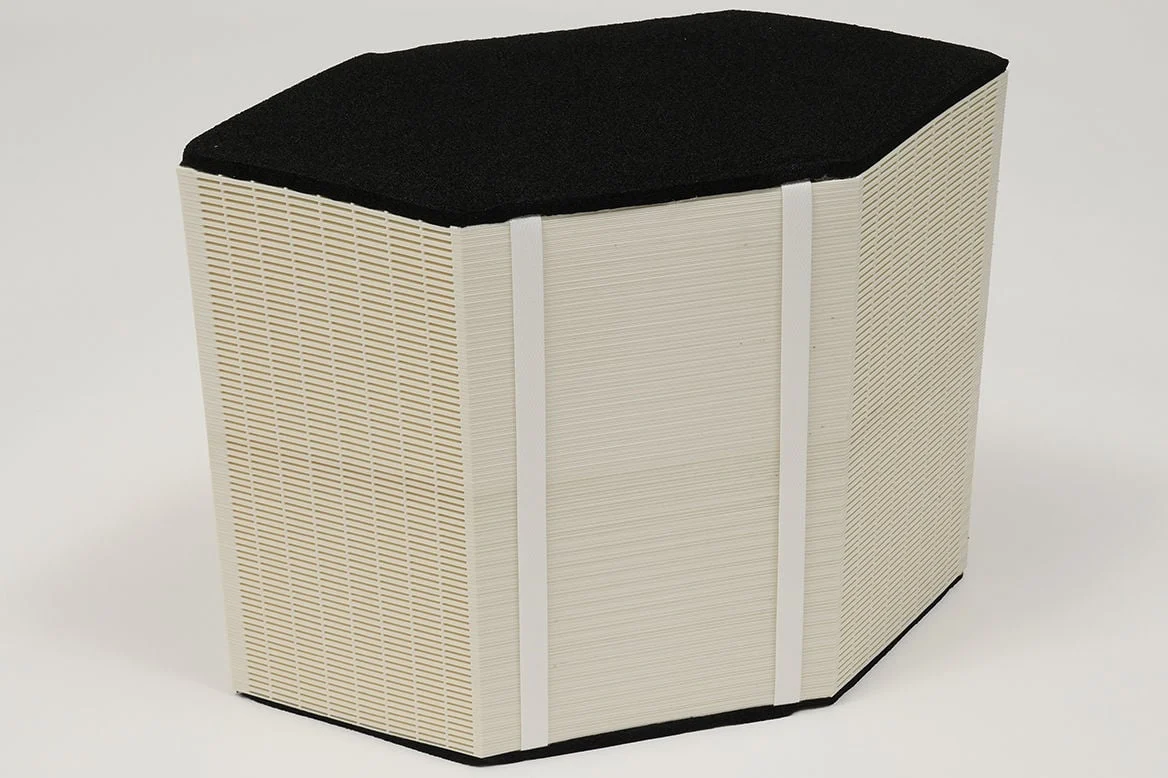

Exchange Capillary Core
Indoor and outdoor air pass through Panasonic’s patented capillary core designed to transfer heat and moisture. This process tempers supply air while transferring moisture. The core’s high latent energy (moisture) transfer makes Intelli-Balance 100 ideal for use in most climate zones, as it helps expel moisture during incidences of high relative humidity (RH) and helps return moisture back inside during the winter for a healthier, more comfortable living environment.
Filters and Maintenance
Intelli-Balance®100 has two filters that clean the exhaust and supply air before passing through the ERV core, extending the life of the core. A hinged access panel allows for quick and easy product maintenance and filter checks. Convenient light indicator and unobtrusive alarm signal on the access panel will help inform the homeowner when it’s time to check and clean the filters. Both filters should be vacuumed with a soft brush attachment every 2-3 months or as needed, and the supply air filter should be inspected every 90 days and replaced every 6 months to maintain the ERV’s peak performance.
